Process Moisture Analyzer Sensors for Precision Measurement

To get accurate pricing on MAC moisture analyzer sensors, connect with our technical specialists for application-specific recommendations. Pricing varies based on the model (MAC155-H, MAC155-L, or MAC125), measurement range requirements (3% to 60%), temperature specifications (standard 1200°F or optional 2400°F), and specific industry application needs.

The solid-state design significantly extends sensor life by eliminating maintenance-intensive components found in traditional analyzers. By removing the need for wet bulbs, chemicals, optical components, and compressed air requirements, these sensors reduce maintenance costs and operational complexity while maintaining ±1% accuracy in harsh industrial environments up to 1200°F.

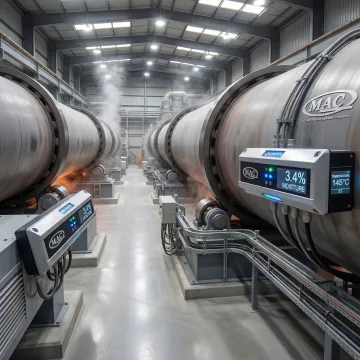

MAC moisture analyzers operate in industrial processes from 40°F to 1200°F as standard, with an optional capability extending to 2400°F. This wide temperature range makes them suitable for extreme high-temperature applications including furnaces, kilns, metal processing operations, and cement manufacturing processes.

Yes, the MAC155 is EPA compliant for stack gas moisture measurements and meets regulatory requirements for emission monitoring. This makes it suitable for continuous emissions monitoring systems (CEMS) in power generation facilities and other industries requiring regulatory compliance for stack monitoring applications.

MAC moisture analyzers deliver ±1% of %MBV full scale accuracy with excellent linearity and repeatability specifications. All analyzers are NIST traceable, and the MAC155 model includes a built-in daily calibration system that allows for routine verification of measurement accuracy over time.

Yes, all models feature NEMA 4X/IP53 weatherproof construction with stainless steel and cast aluminum materials designed specifically for harsh indoor and outdoor industrial environments. This rugged design ensures reliable operation in power generation, cement manufacturing, metal processing, and other demanding applications.

MAC moisture analyzers deliver a fast 60-second response time, enabling rapid detection of moisture changes in your industrial process. This quick response is essential for real-time process control and optimization in applications like combustion monitoring, kiln operations, and furnace management.
